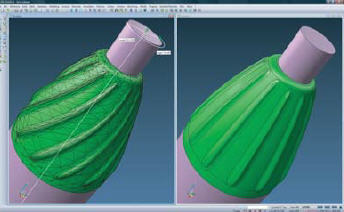

Visi Modeling

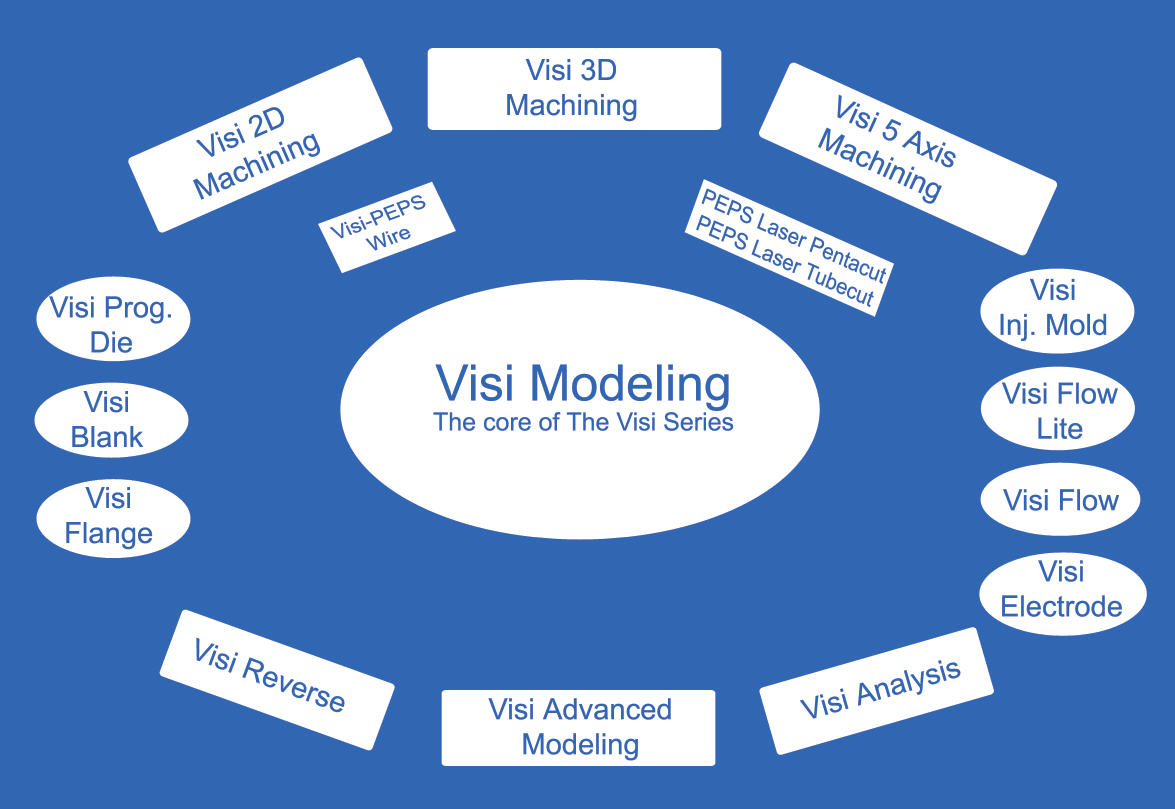

VISI-Series™ Software - The only fully integrated CAD/CAM/CAE system designed and developed for the tooling industry implementing advanced strategies and solutions. VISI-Series™ products give a clear competitive edge in today's tough market along with eliminating the need for various software suppliers. Expect production and quality improvement with an increase in profitability.

VISI-Series™ is acknowledged as one of the world's leading PC based design and manufacturing solutions for the tooling industry. It offers a unique combination of applications, fully integrated wireframe, surface and solid modeling, comprehensive 2D and 3D machining strategies with high speed routines and dedicated tool design for plastic injection and progressive dies.

VISI-Mold (1.4 MB PDF)
VISI-Flow (347 KB PDF)
VISI-Analysis (1.70 MB PDF)
VISI-Progress (2.3 MB PDF)

VISI-3D Machining (4.0 MB PDF) VISI-2D Machining (2.4 MB PDF)
VISI-5-Axis (2.15 MB PDF)
VISI-Electrode (1.63 MB PDF)

Vero WEBSITE

We have a awesome post for Centroid M Series Controllers

VISI-MACHINING 2D: Integrated 2D Design and Machining provides the necessary design and machining tools for 2D milling, pocketing with islands, profiling and complex machining cycles for all drilling strategies on wireframe geometry.

This integrated wireframe modeler (VISI-Design) secures the easiest way of defining the part to be machined, as well as providing multiple import and export possibilities between various cad systems.

VISI-MACHINING 3D: VISI-Machining 3D is a high level CNC programming system providing toolpath calculations and simulation directly on an integrated solid and surface modeling base. The package offers multiple gouge free machining strategies which cover the full range of geometric conditions required by complex parts.


Requiring minimal intervention from the production engineer, the system speedily calculates offsets and CNC codes for a range of tool shapes. Simulation of tool movements and solid, shaded representation of the final piece ensure error free machining and scrap reduction.


The integrated solid and surface modeler secures the easiest way of defining the part to be machined, as well as, providing multiple import/export possibilities between cad systems.

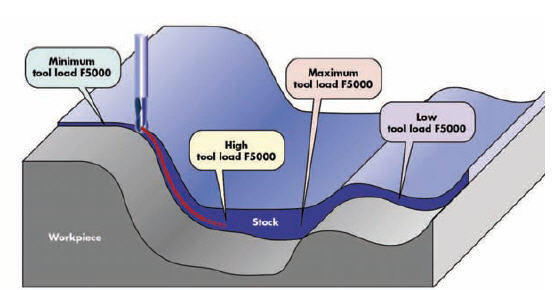

VISI-Machining 3D caters for all the High Speed machining requirements; optimized rapid movements, dedicated HSM strategies and batch processing of predefined machining sequences. Rest roughing removes large volumes of stock material prior to finish machining. This guarantees that the tool loading remains constant, benifiting the high speed milling operations.
