Vacuum vise or chuck
Eliminate Specialized Fixtures!
 | Holds thin, flat, or irregular shaped parts
|
| Flexible foam gasket fits all parts
|
| Works with flood coolant
|
| Runs off shop air (no vacuum pump needed)
|
| Reduces fixture setup and tear down time
|
| Machine whole parts with one setup
|
| Ideal for aluminum, copper, plastic, ceramics, steel, and graphite
|
top
Product Information - Table / Generator / Fixtures / Technical Specifications Table

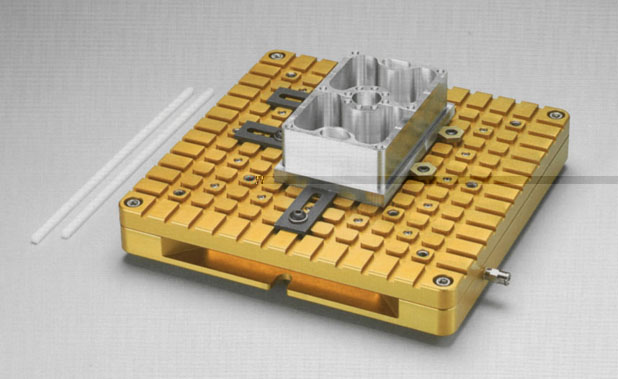

The base and top plate of the Vacu-Vise™ are constructed of high-grade anodized aluminum with stainless steel fastener hardware. Delrin strips are used for part squaring. For part-holding, foam gasket material fits into the grid matrix channels to create a vacuum seal around the part periphery. Side clamps and Mitee Bites clamps provide an additional holding option. |
Part Number #V V1212 |
| Keyed for quick set up
|
| Holds aluminum, plastic, ferrous and other non-ferrous materials
|
| Easily configured to hold thin, flat, or irregular shaped parts
|
| Excellent for machining under flood coolant conditions
|
| Replaceable top matrix plates available
|
|
Part Number #VG01 | Venturi Vacuum Generator
| Operates off shop air
|
| No moving parts to deteriorate
|
| Easy mounting
|
| 2 liter container for coolant overflow capture
|
| Slide valve for quick clamping and release
|
| Vacuum gauge included
|
| Vacu-Vise™ Fixtures
#V V1212 The 12" x 12" table comes with the following hardware: 2 - 11" low profile plastic guide bars 3 - slide clamps 3 - Mitee-bite™ clamps 2 - Sine-keys to fit a .625" slotted machine table 1 - *" tubing fitting 1 - 50' roll of *" closed celled gasket cord
|
#V V2416 The 24" x 16" table comes with the following hardware: 4 - 11" low profile plastic guide bars. 6 - slide clamps 6 - Mitee-bite™ clamps 2 - Sine-keys to fit a .625" slotted machine table 1 - *" tubing fitting 1 - 50' roll of *" closed celled gasket cord |
|
