| Elrod Machine Route 66
Task Master CNC Mill Features |
|
|
| |
|
|
|
| Modes Of Operation |
|
|
|
| 3 axis cnc (Full 3
Axis Simultaneous) |
|
YES |
|
| 2 axis cnc |
|
YES |
|
| "Real Feel In The
Cut" manual mode |
|
YES |
|
| This is not an electronic
handwheel |
|
|
|
|
4th axis upgradeable
(Full
4 Axis Simultaneous When Installed) |
|
YES |
|
|
|
|
|
Controller Features |
|
|
|
| USB File Import |
|
YES |
|
| Ethernet Connectivity To MS Network |
|
YES |
|
| Operating System Linux |
|
YES |
|
| Compact Flash HDD 2 Gig |
|
YES |
|
| 15" Color Non Glare LCD |
|
YES |
|
| Full PLC W/ M Functions M3-M5, M7-M9 and
more! |
|
YES |
|
| Prog, Spindle Speeds W/ auto on/off |
|
YES |
|
| No Auxillary Box Needed! |
|
YES |
|
|
|
|
|
Std. Software & Options |
|
|
|
| Conversational Prog. With
cycles below |
|
YES |
|
| (Drilling Cycles, Rect. Pkt.,
Circ. Pkt, Irregular Pkt, |
|
|
|
| Frame, Face, Thread
Mill, Rotate, Depth Repeat, |
|
|
|
| Linear Array Repeat) |
|
|
|
| One Shot Features for Fast
Operations |
|
YES |
|
| (Drill BHC, Drill Array,
Rect. Pkt., Circ. Pkt., Frame |
|
|
|
| Mill, Face Mill, Quick Set X,
Y and Z buttons) |
|
|
|
| DXF Import |
|
Opt. |
|
| G Code Compatible |
|
YES |
|
| Cutter Comp. |
|
YES |
|
| File Size 4 Meg. Std. Optional Unlimited
File Size |
|
YES |
|
| Mult. Work
Coord. |
|
YES |
|
| Subroutines & Macs |
|
YES |
|
| Coord. Sys. Rotate (Skew Axis) |
|
Opt. |
|
| Rigid Tapping (Optional But Yes RT on a
Knee Mill!) |
|
Opt. |
|
| Comp. Tapping |
|
YES |
|
| Drilling Cycles |
|
YES |
|
| Digitize Ready |
|
Opt. |
|
| Auto Tool Offsets |
|
Opt. |
|
| Tool Offset Table with 200 Tool Offsets
Dia. and Length |
|
YES |
|
| Probing |
|
Opt. |
|
| Processing 600BPS 2000 line lookahead |
|
YES |
|
| Cut 3D programs easily! |
|
YES |
|
|
|
|
| Hardware Features |
|
|
|
|
|
|
|
Patented Quill Drive Mounting
System |
|
YES |
|
| Does not mount with tramming
bolts |
|
|
|
| Swivel the head and never
misalign the Quill Drive |
|
|
|
|
|
|
|
| Quill Drive Quick Disconnect |
|
YES |
|
| With "Real Feel"
when disconnected |
|
|
|
|
|
|
| Smart-Z on the Quill
(Patented) |
|
YES |
|
| This feature gives
you Z Axis Feedback when the |
|
|
|
| Z Axis is Disconnected |
|
|
|
|
|
|
|
|
Smart-Stop (Patented) |
|
YES |
|
| This feature gives you back
your quill stop! |
|
|
|
| Very handy when the Quill
Drive is disconnected |
|
|
|
|
|
|
|
|
Hand Wheels on X&Y Axis
Motor Bracket Kits |
|
YES |
|
| In Manual Mode You Really
"FEEL" the cut |
|
|
|
|
|
|
|
Heavy
Duty Yoke &
Precision Ground XY Ball Screws |
|
YES |
|
| This prevents Y Axis
"Springy Lash" |
|
|
|
|
|
|
|
Auto Way Lube Pump |
|
YES |
|
| Protects your investment |
|
|
|
|
|
|
|
|
Hard Limit Switches |
|
YES |
|
|
|
|
|
Elrod Machine Rigid Tapping
Adapter Pat.
Pending |
|
Opt. |
|
| Rigid Tap on your knee mill
just like a VMC! |
|
|
|
|
|
|
|
Maxi Torque Rite Power Draw
Bar Made In U.S.A. |
|
YES |
Incl. On |
|
| Can be used with Above Option |
|
|
TM#3 & TM#4 CNC Mills |
|
|
|
| Mill Iron Features |
|
|
|
|
10x54 Table
Hardened and Ground |
|
|
|
|
Double
Dovetail Ways On Saddle |
|
|
|
| Inverter Spindle (No Mechanical
Vari-Speed) |
|
|
|
| Baldor Super E Spindle Motor Yaskawa
Inverter |
|
|
|
|
Precision Spindle |
|
|
|
|

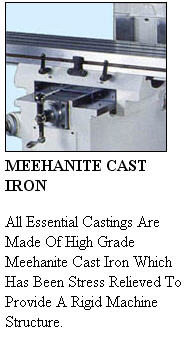

Precisely Scrape
Castings |
|
|
|

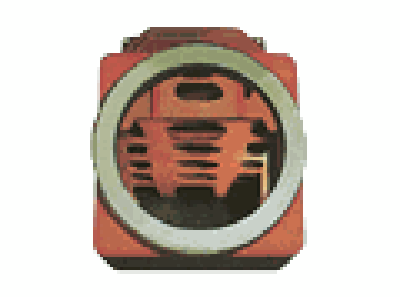

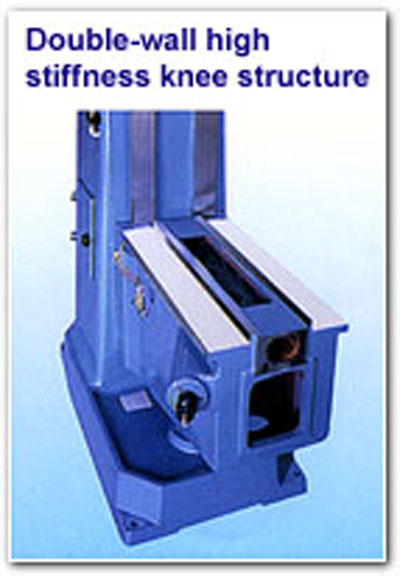

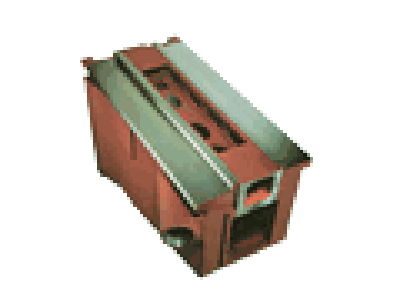

| Casting Is Double Wall Construction
(Heavier than Competition)
Example 1
Example 2
Example 3 |
|
|
|
|
|
|
|
|
|
|
