Rigid Tapping Adapter for Knee Mills and Bed Mills

It has always been on our customers wish list

So,

Elrod Machine is now offering our rigid tapping Adapter for CNC knee mills and most CNC bed mills both 3 and 5 HP models

Patent Pending

The most innovative device you can install on your mill!

Our rigid tapping Adapter  will change the way you  use your machine!

Our prototype has been in use for quite a while and we have never been so excited about a product, it is awesome!


*****Customer Machine Dimension Sheet to Fill In*****



No more reversing or floating heads!

bulletUse a drill chuck or collet chuck to hold your tap.
bulletUse the same holder for center drill, tap drill and tap!
bulletMinimizes tool length setup because you can use a collet.
bulletRigid tapping cycle is the same as a machining center.
bulletTap from 2-56 through ? (Depends on your machines capabilities)
bulletYour controller must have a rigid tapping cycle we currently know Centroid, Fagor and Anilam offer this option.
bulletInstall our unit and plug the encoder into the controls specific feedback port to start your rigid tapping!
bulletYes, You can still use your power draw bar!

Right Mouse Click Video Links and Save Target As to Your Computer For Viewing

Download our video to watch our Rigid Tapping in action on an Acra Mill Retrofit.

Download Rigid Peck Tapping Example

Download Rigid Peck Tapping 303ss Example

Download Rigid Tapping Example On Our Route66 TaskMaster3 CNC Mill

Spindle Orientation Feature on our Rigid Tapping Adapter

       A Real Time Saver When Using your Mill. Just think no more hunting for that

       illusive drive key in an R8 Taper or the 2 Square Lugs in a #40 Taper.



Right Mouse Click Video Links and Save Target As to Your Computer For Viewing

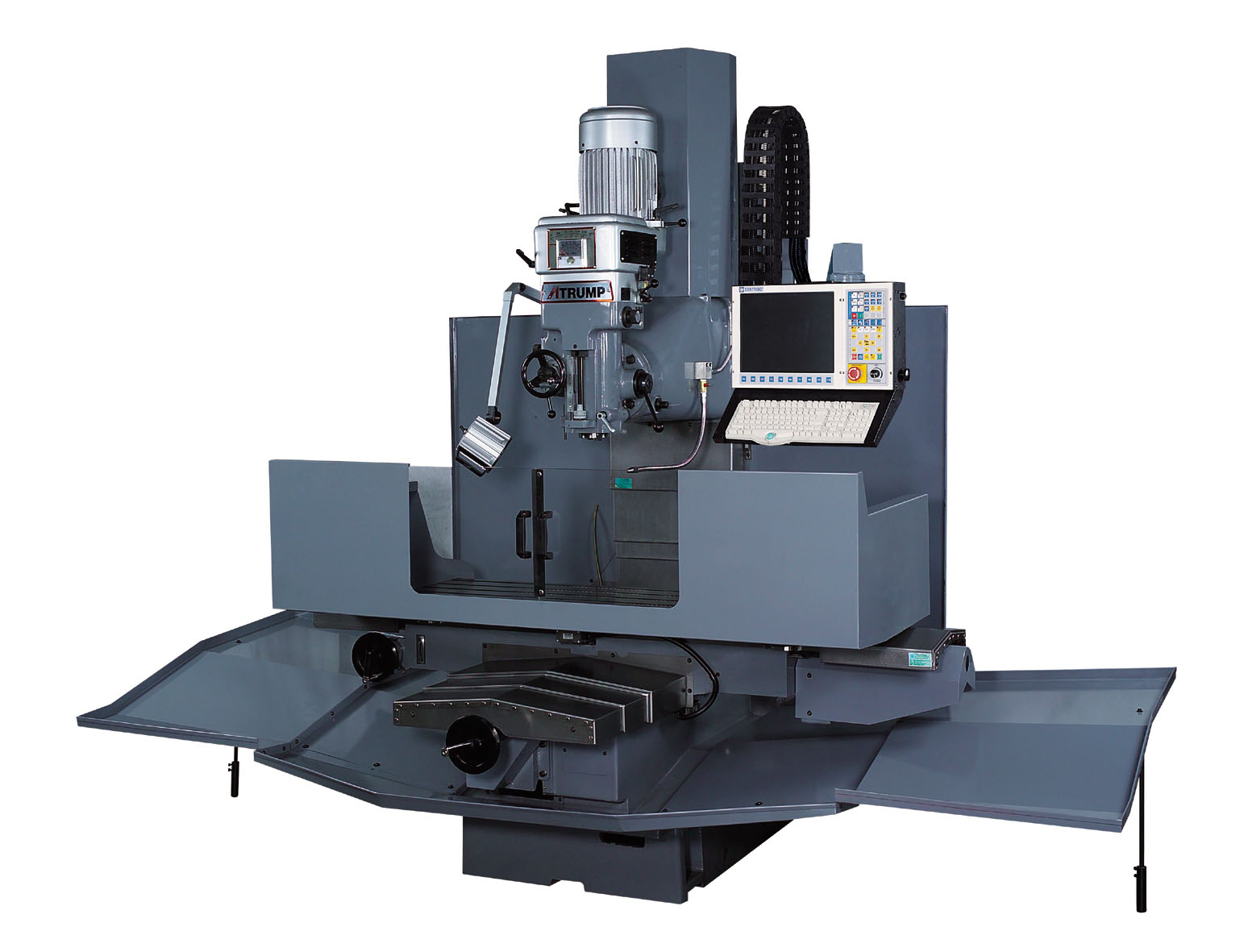

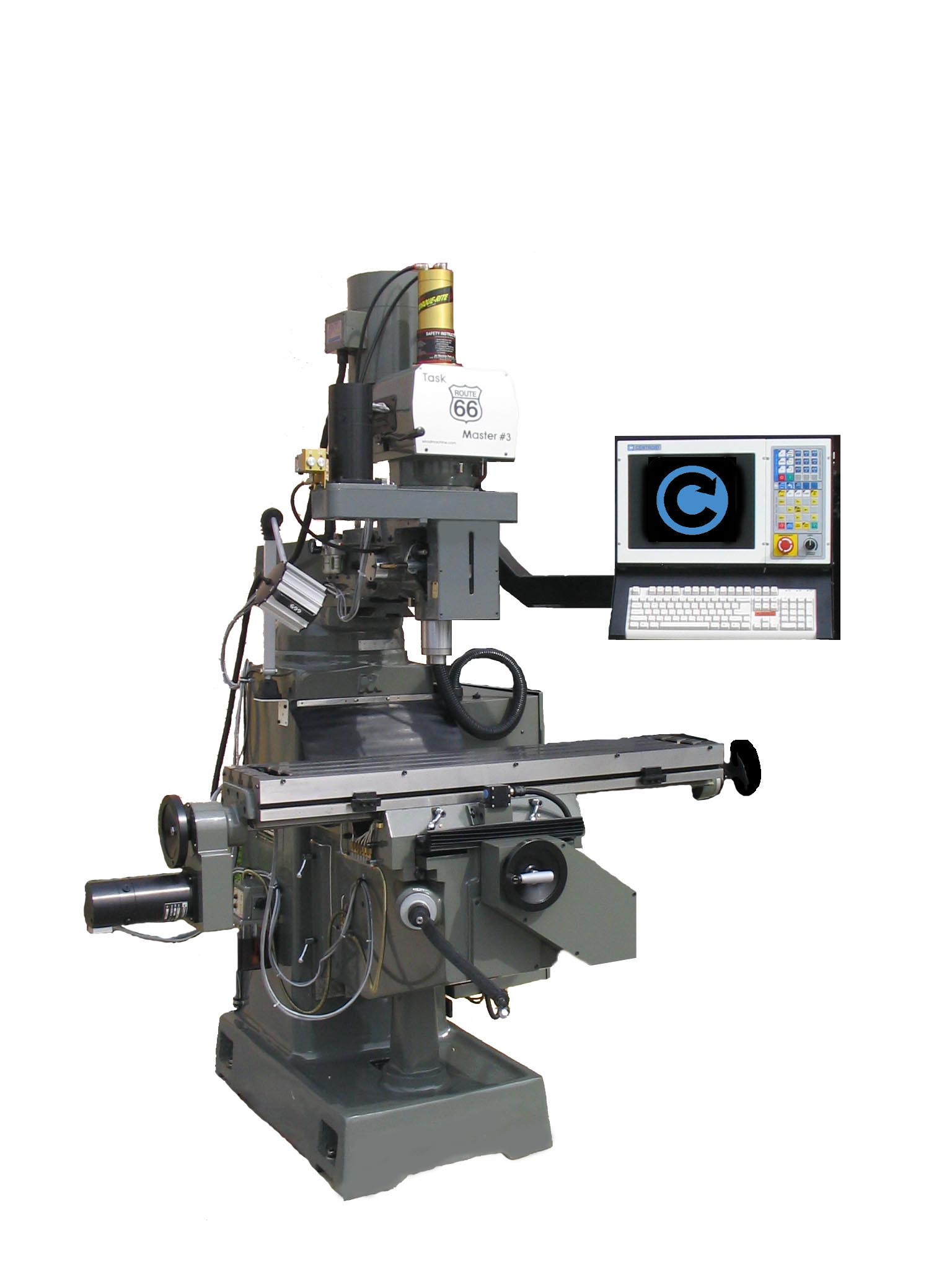

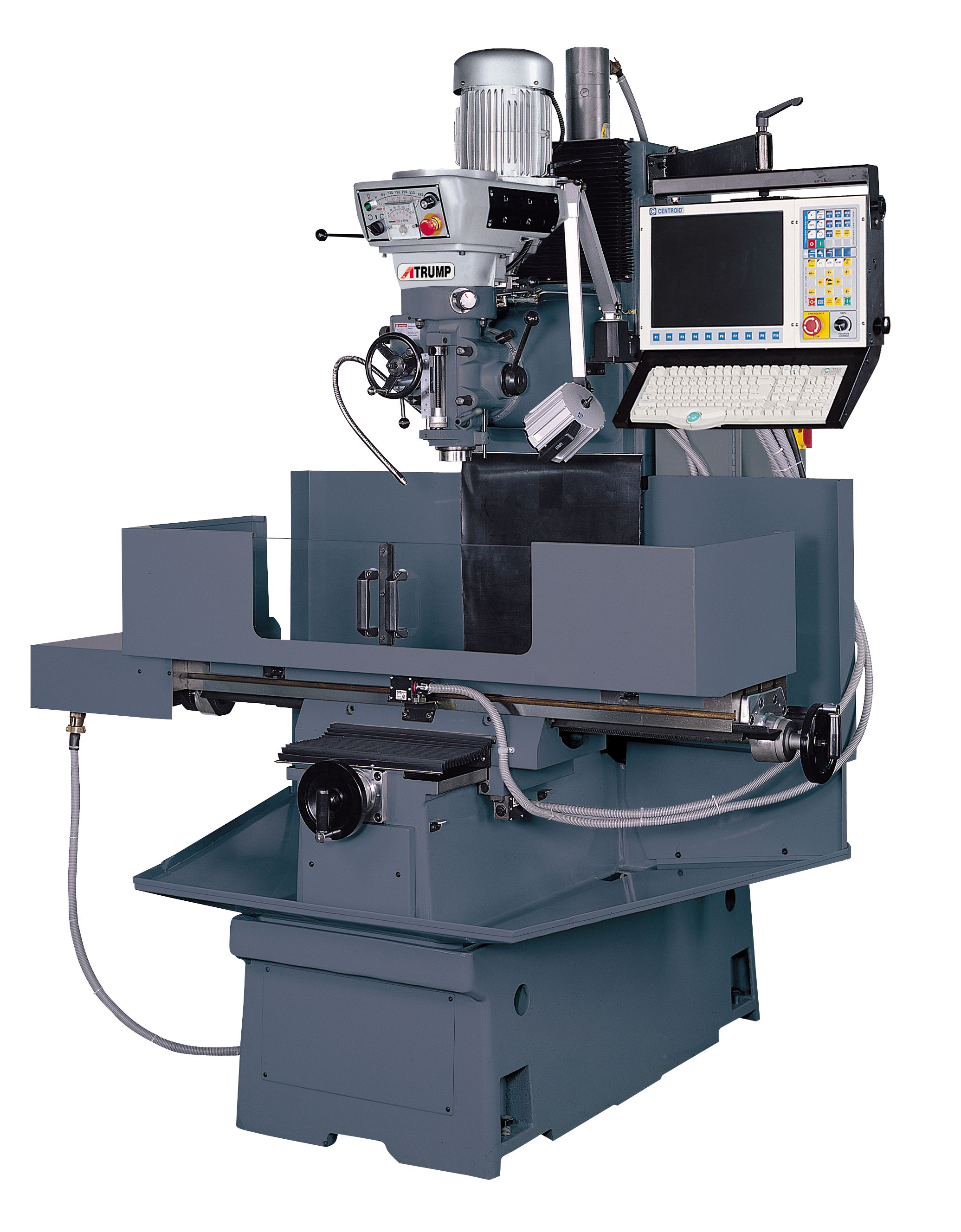

Our Rigid Tapping Adapter can be installed on machines like the ones above and more!

Send us pictures of your machine and we will see if it will fit.
