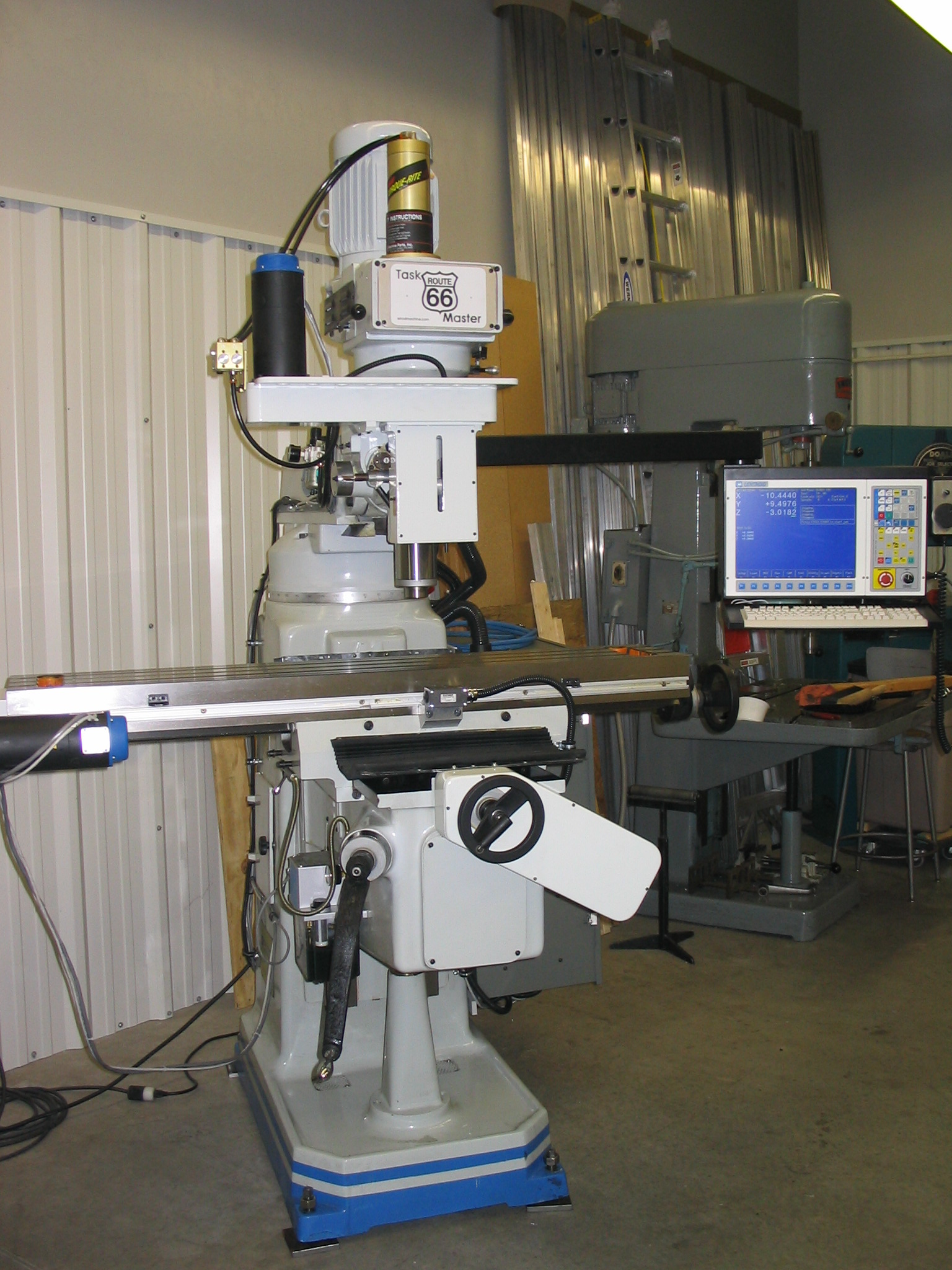

3 Axis CNC Knee Mill Task Master 3 Toolroom CNC
 Features
Outstanding value and price with support
- All Taiwanese casting, this is not a hybrid!
- Class 7 Angular Contact
Bearings
- Certified Meehanite Casting
- Ram Locking System U.S.
Patent #4990039 Utilizing 6 T-Bolts
- R8 STD.
- Hand Scraped Turret-Column
Ways

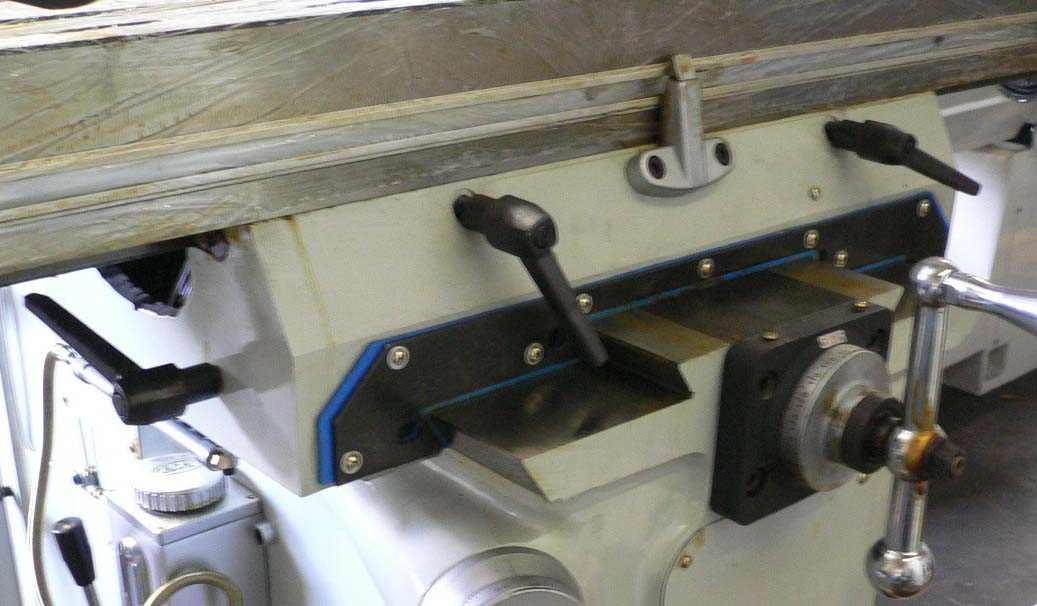

- Square Y & Z Ways
- Dust Cover For Knee And
Crossfeed Ways
- Precision Hardened And
Ground Table With Turcite
- Double Wall Column
- Built-In Coolant Tank In
Base
STANDARD
EQUIPMENT:
- TURCITE On The X & Y Axis
|
STANDARD ACCESSORIES: |
|
|
Tools & box |
29in/lbs DC motor |
|
Centroid 3axes
M400S control |
|
Leveling bolts &
plate |
Torque-Rite USA MadeDraw bar |
|
3 3/8" Quill Heat Treat Hardened
& Chromed |
|
Way covers |
Automatic lube
system |
Double
Wall Construction |
|
Operation manual |
NST 40 Spindle |
Hardened & Ground Table &
Ways |
Std. Specifications:
|
SPECIFICATIONS |
AM3AC |
|
TABLE |
Table Size |
10" x 54" |
|
Longitudinal Travel (X Axis) |
39 1/2" |
| Cross Travel
(Y Axis) |
16" |
| Vertical
Knee Travel (Z Axis) |
16" |
| Over Ram Travel |
18" |
| T-Slot
Number , Size |
3 , 5/8" |
|
SPINDLE |
Spindle Motor |
R8 |
| Spindle
Speed |
Inf. Vari. |
| Spindle RPM |
50~5,000 RPM |
|
QUILL |
Quill
Diameter |
3 3/8" |
| Quill Travel |
4.7 CNC & Manual |
|
POWER |
Main Motor |
3 HP Baldor Super E |
| Voltage |
220V 1PH / 3PH |
|
WEIGHT |
Net Weight |
3,520 LBS |
| Dimension W.x L. |
68 1/2" x 56 1/2" |
|
Controller |
Centroid
M400S |
110VAC |
|
PLC |
Full PLC
with M Functions |
|
|
3 Modes Of
Operation |
3 Axis CNC,
2 Axis with Z Feedback, Manual Machine with 3 Axis DRO |
|
|
4th Axis
Upgrade |
Unit Can be
Upgraded to 4th Axis |
|
|
Programmable
Spindle Speeds |
M3, M4 and
M5 with S Function |
Can Run on 208, 230 VAC
or 220 Single Phase Power
(NO Phase Converter Needed) |
|
Hand Wheels
for Manual Use |
Aluminum
Body With Folding Handles For Safety |
|
|
USA Made Draw
Bar |
Mill
Supplied With Torque-Rite Power Draw Bar |
|
|
Power Needed |
Std Control
Runs on 110VAC |
Optional High Power
Option to 3 Phase |
|
CNC Travels |
X 31.5" Y
17" Z 4.7" Manual Knee 19" |
|
The manufacturer reserves the right to modify the design,
specifications, & mechanisms to improve the performances of
the machines without notice. All specifications above are for
your reference only.
|
Additional Accessories information: |
|
|
Power requirement |
|
4 KVA 3
phase 208V/230Vmax / 110VAC |
|
Air requirement |
|
|
|
Power draw bar 90 - 100 psi |
|
Type of oil for Way
oil / pneumatic oil |
Mobil
Vactra #2 / Air tool oil /
Mobile Velocite 10 |
|
Coolant capacity |
|
|
|
|
7
Gallons |
MACHINE
OPTIONAL ACCESSORIES:
|
1.
Automatic mist coolant system |
$
575.00 |
|
2. High
voltage option (TRANSFORMER): 220 VOLTS TO 440 OR 480
VOLTS |
$ 850.00 |
|
3. Smart- Stop (Adjustable Quill
Stop Similar To Manual Knee Mill Quill Stop) |
$ 375.00 |
|
4.
Flood
Coolant / Chip Tray |
$
650.00 |
|
5.
Halogen
work light |
$ 200.00 |
CONTROL
OPTIONAL ACCESSORIES:
|
1.MPG -
HP 100 STEP |
$ 660.00 |
|
2.CENTROID 150 MM (5.9") ROTARY TABLE; INCLUDES PRE-WIRE,
SOFTWARE |
$
5,717.00 |
|
3.DP-4
DIGITIZING PACKAGE INCLUDES PROBE & SOFTWARE |
$
6,025.00 |
|
4.TT-1
TOOL TOUCH-OFF KIT WITH TOUCH-OFF SOFTWARE (SETTING TOOL
LENGTHS) |
$
695.00 |
|
5.CENTROID ENGRAVING SOFTWARE |
$ 665.00 |
|
6.COMPRESSION TAPPING (G84) |
$ 350.00 |
|
7.UNLIMITED PART PROGRAM SIZE (1 Meg STANDARD ON ALL
M-SERIES CONTROLS) |
$
1,495.00 |
|
8.MULTIPLE WORK COORDINATE SYSTEM (G54-G59) |
$ 700.00 |
|
9.CENTROID DXF IMPORT IN INTERCON |
$ 495.00 |
|
10.USER
DEFINABLE MACROS AND SUB PROGRAMS (G56 & M89) |
$
1495.00 |
|
11.COORDINATE SYSTEM ROTATE |
$ 495.00 |
|
12.
SCALING AND MIRRORING (G50 AND G51) |
$ 495.00 |
|
13.
PACKAGE “B” (OPTION NUMBERS 10, 12 AND 8) WHEN PURCHASED
WITH MACHINE OFFER
EXPIRES
WITH DEMO EXPIRATION) |
$
1850.00 |
|
14.
PACKAGE “C” (OPTION NUMBERS 7, 12 AND 11 WHEN PURCHASED
WITH MACHINE OFFER
EXPIRES
WITH DEMO EXPIRATION)
|
$
1699.00 |
|
15. Tool Room
Package Includes DP4 Probe with Probing Software, TT-1
Tool Setter and
Mult.
Work Coordinates (G54-G59) |
$ 2595.00 |
For the price sensitive customer we can
also offer a Centroid M39 or M39S
HIGH PRECISION SPINDLE
The Spindle Is Supported By
Super Precision Class 7 (P4) Angular Contact Ball Bearings
Which Have Been Accurately Measured, Selected And Preloaded,
Then Assembled In A Temperature Controlled Room To Ensure
Accuracy And Rigidity Throughout The Full RPM Range.
ACCURATELY GROUND QUILL &
HOUSING
Hardened And Ground Spindle
Back-Gears. The Hard Chromed Quill Is Ground To Mirror Finish
And Fitted To The Quill Housing To Ensure Smooth Movement,
Excellent Rigidity And Offers Extreme High Spindle Accuracy.
MEEHANITE
CAST IRON
All Essential Castings Are
Made Of High Grade Meehanite Cast Iron Which Has Been Stress
Relieved To Provide A Rigid Machine Structure.
Elrod
CNC Mills are being used by well known companies such as :
Honeywell
Los Alamos National Laboratory
Lowell Observatory
US Naval Observatory
ATK America (The other USA made motorcycle)
WL Gore and Associates
Machine Solutions
